رسم كرة القدم بالاستروتر

Soccer Ball Drawing


Step 1
Create a new document in Adobe Illustrator and draw a hexagon like in the next picture using Polygon Tool in the Tools Tab:

Step 2

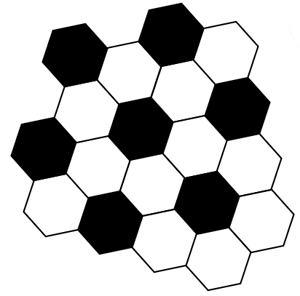

Duplicate the polygon (CTRL+ENTER) and repeat the step until you obtain the below result. (Colorized the polygons like this):



Step 3

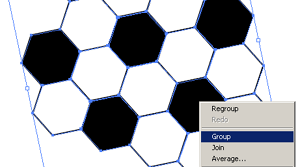

Select all the polygons, right click and choose Group:



Step 4

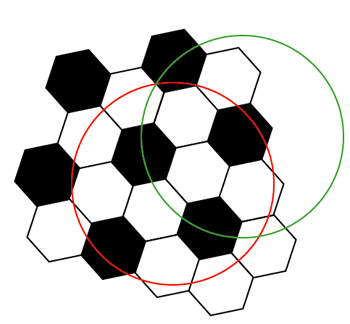

Now draw a circle (using Ellipse Tool in the Tools Tab) and duplicate it:



Step 5

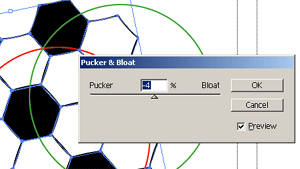

Select the polygons and apply the next effect: Effects > Distort & Transform > Pucker & Bloat with the next settings:



Step 6
Select the polygons and the red circle, right click and choose Make Clipping Mask:



Step 7
Move the green circle over the mask area and set the border color to black:



Step 8

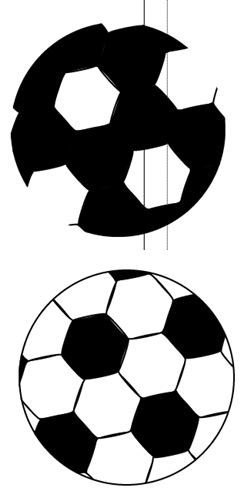

Repeat the steps 1 to 7 but, this time, invert the colors of the polygons and create a single circle (the green circle):



Step 9
Move the new polygons over the polygons that were first created:



Step 10
Select the new polygons (the newly created polygons) and apply the next effect: Effects > SVG Filter > AI_Static:



Step 11
Set the opacity in the Transparency Tab to 45%:


Step 12

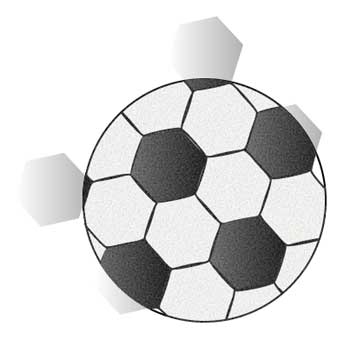

Draw a new polygon and set the color to gradient (black/white) and the opacity to 30%:



Step 13
Repeat previous step for all the black polygons:



Step 14
Draw a new circle and select the polygons with the blend color right click and choose Make Clipping Mask:



Step 15

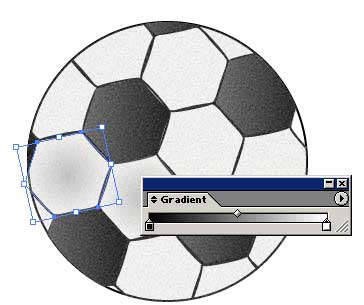

Now make a new polygon with a gradient color like this and opacity to 20%:



Step 16

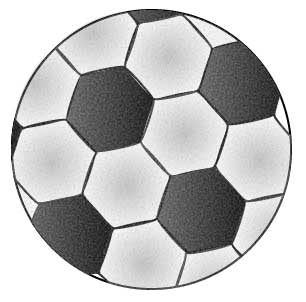

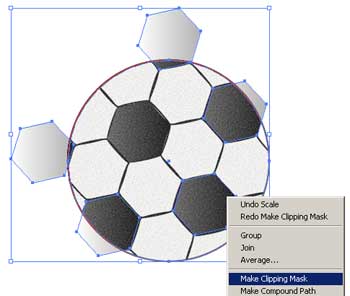

Duplicate the polygon for all the white polygons, draw a circle, select all the polygons and the new circle and select Make Clipping Mask:



Step 17
Apply feather effect for the black and white polygons (Effects > Stylize > Feather) with the "Feather Radius" set to 5:



Step 18
Resize the ball and add some kind of shadow and you have a soccer ball:
